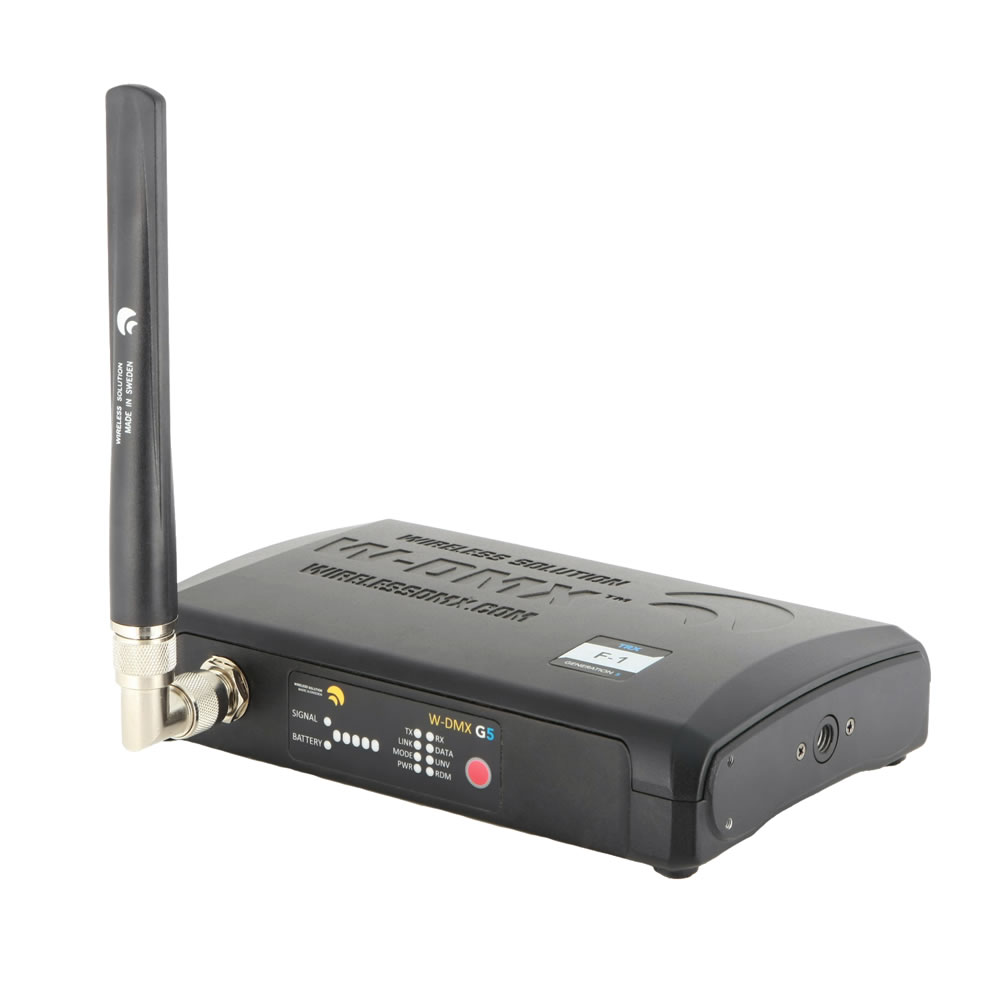

Wireless Solution W-DMX Black Box F1 G5 TX/RX

Wireless Solution W-DMX Black Box F1 G5 TX/RX


Want to hire this item?

To hire this product or for more information,
click below or call us on 0203 598 6938


Send Hire Enquiry
Send Hire Enquiry

The W-DMX™ BlackBox series is an industry bell-weather for Wireless DMX and RDM control, packed into a tough, roadworthy die-cast metal casing.

The W-DMX™ BlackBox G5 uses our patented Adaptive Frequency Hopping technology to automatically avoid interference created by other wireless networks, for example W-LAN, wireless intercoms, stage automation systems and more.

G5 supports 2.4GHz, 5.2 GHZ and 5.8GHz frequency bands, these triple-band units have full RDM support (transceiver models only)
All BlackBox units are backward compatible with W-DMX™ G3 units

For links over greater distances, or for more complex projects needing one of Wireless Solution’s other antenna, the N-type antenna connector allows any compatible antenna to be screwed on, quickly and easily.

Suitable for use with our SmartBAT Plus units

DMX Structure

  • Number of universes per device: 1
  • Number of DMX channels: 512
  • DMX latency: < 5ms
  • Max.Universes in coexistence: 32
  • Input/Output opto isolation
  • Error correction (Invisi-Wire)
  • DMX Fidelity (Data-Safe)

Radio Technology

  • Adaptive Frequency Hopping
  • W-DMX G3 & G4S compatibility
  • 2.4 GHz
  • 5.2 & 5.8 GHz (1)
  • Standard range: Up to 700m (LOS)
  • Expandable range: Unlimited
  • Sensitivity (0.1% PER): -97dBm
  • Modulation Method: GFSK
  • Normal Power Mode 2.4 GHz: 100mW
  • Maximum Power Mode 2.4 GHz: Up to 450mW

Connectors

  • DMX Connectors: XLR 3 & 5 Pin
  • AC Input: PowerCon
  • Antenna Connector: N Type
  • Net Weight: 1Kg

Mounting

  • M10 Female Thread

Environmental

  • Temperature Range: 0 - 45C
  • Humidity: 90%
  • IP Rating: IP45
