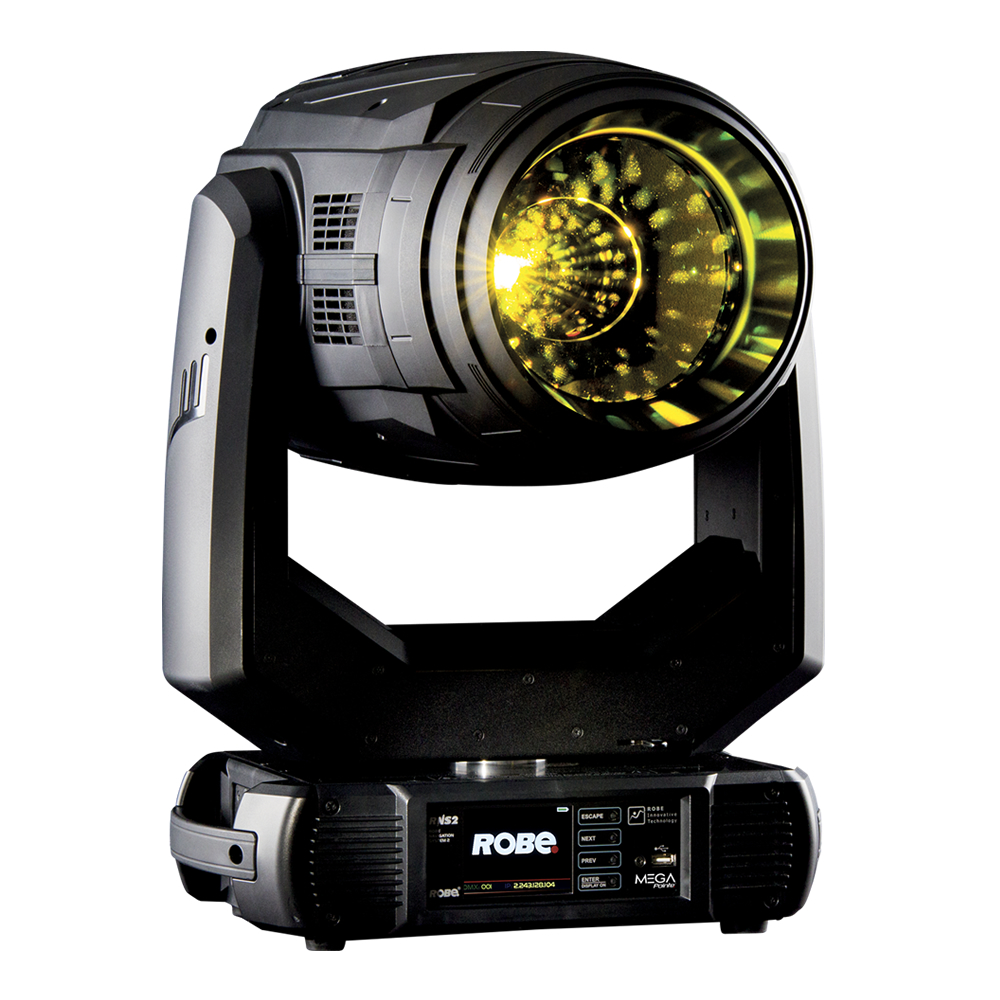

The all-new MegaPointe elevates the original all-in-one fixture to a whole new level. Unleash your creativity using the bright sharp parallel beams, excellent gobo projection, precise movement, smooth CMY colour mixing and dimming plus a multitude of beam splitting, wash and shaping effects.

Osrams 470W lamp that aligns perfectly with the cutting edge optical system provides a brilliant, crystal clear, razor-edged beam, adjustable from a punchy 1.8 out to a wide 42 degree zoom.

Both static and rotating (glass) gobos produce precision in-air effects or projected images with a sharp, high-contrast, flat field.

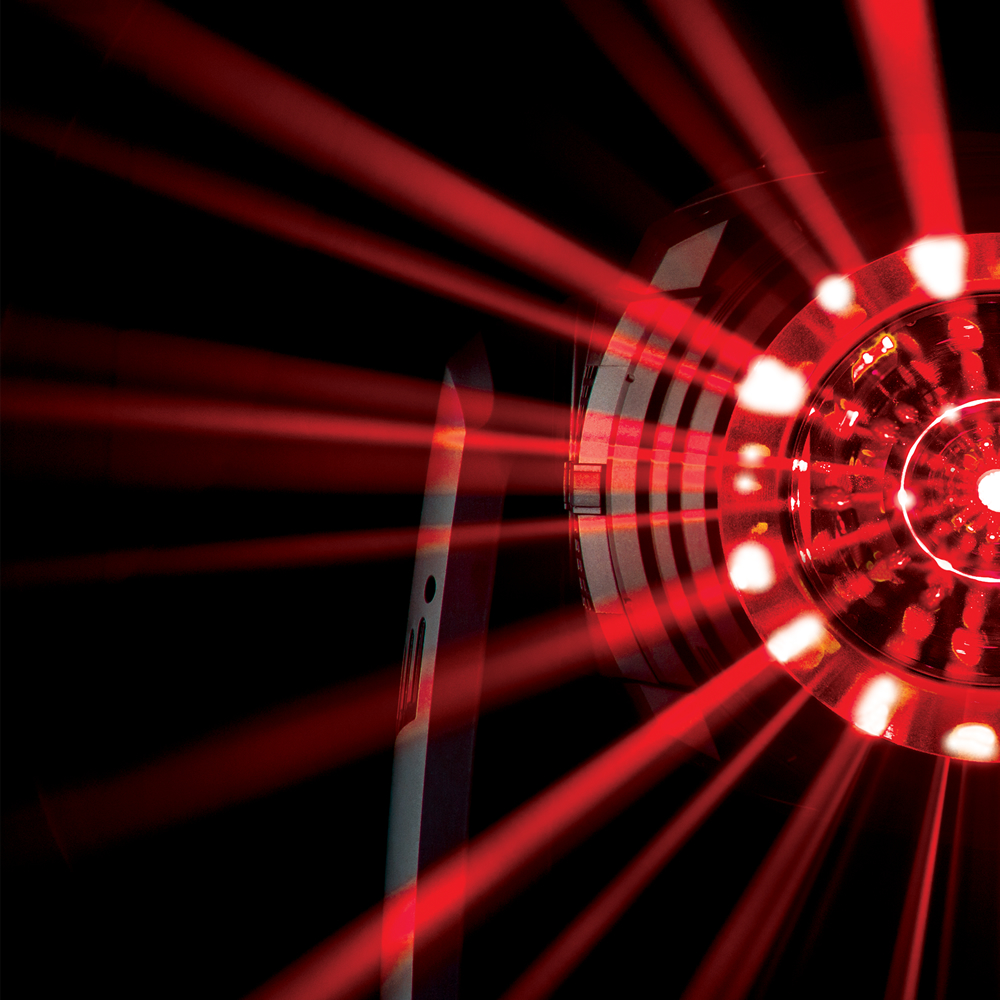

The newly designed effects engine can produce 12 varying beam and ‘flower’ effects. The beam can also be shaped using innovative shutter emulation, further creating a whole new blend of content & creativity.

  • SOURCE

    • Lamp: Discharge short arc lamp with integrated reflector
    • Approved model: Osram Sirius HRI 470 W RO
    • Lifetime: 1.500 hours @ 470W Standard mode, 2.000 hours @ 380W Eco mode
    • CRI: 80/90
    • CCT Light Output: 6.300 K, CCT Lamp: 7.500 K
    • Control: Automatic and remote on/off
    • Ballast: Electronic
  • OPTICAL SYSTEM

    • Robe’s proprietary optical design (Patent pending).
    • Zoom optical system: 14:1
    • Zoom range:
      • 1.8°– 21° beam mode
      • 3°– 42° spot mode
    • Output lens diameter: 150 mm
    • Fixture total lumen output: 20.375 lm
    • Light output:
      • Beam mode 1.8°: 2.200.000 lx @ 5 m
      • Beam mode 1.8°: 137.500 lx @ 20 m
      • Spot mode 3°: 715.300 lx @ 5 m
      • Spot mode 3°: 44.710 lx @ 20 m
  • DYNAMIC EFFECTS

    • Cyan: 0 – 100%
    • Magenta: 0 – 100%
    • Yellow: 0 – 100%
    • Colour Wheel: 13 dichroic filters + white

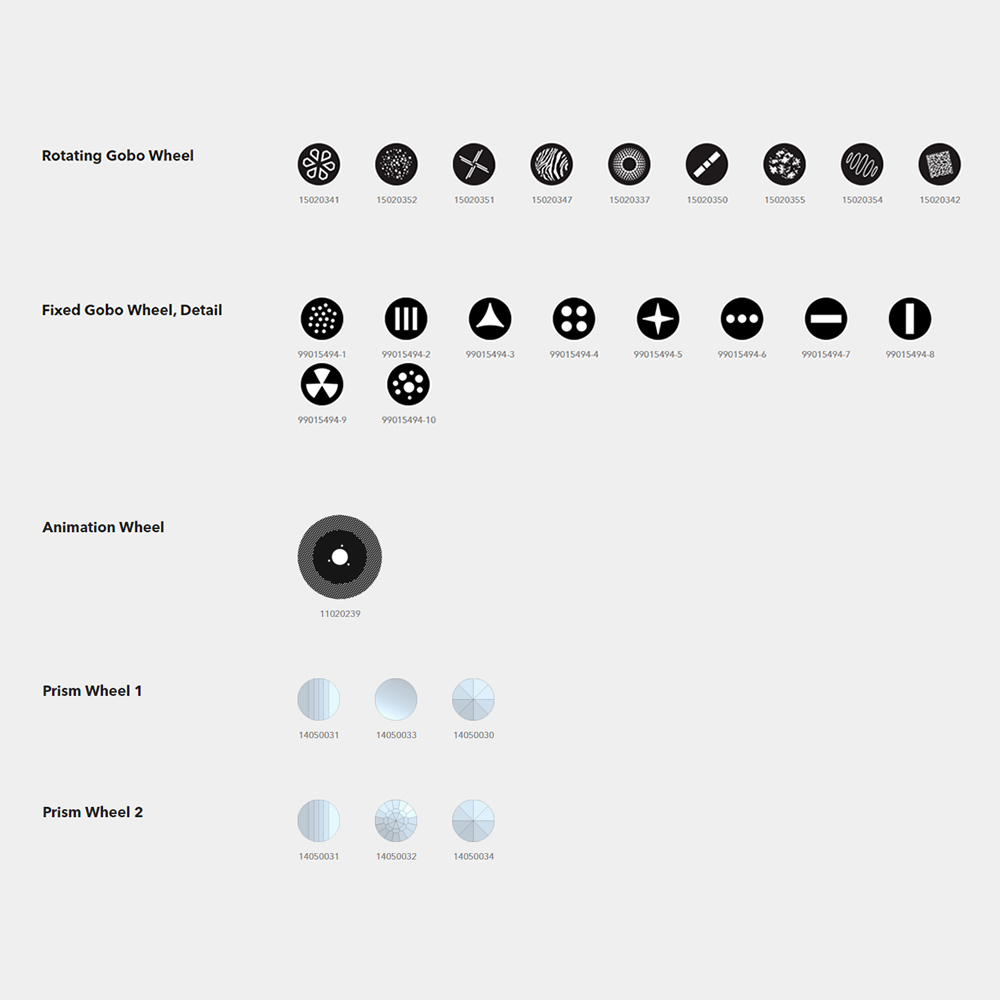

    • Rotating gobo wheel: 9 rotating, indexable and replaceable gobos + open
    • Static gobo wheel: 14 gobos + open
    • Animation wheel: Aluminium animation wheel, used alone or in combination with gobos, rotating in both directions at variable speed
    • Innovative Effect Engine consisting of 6 prisms placed on two wheels, producing 12 various Beam and Flower effects (Patent pending)
    • Beam shaper emulating framing shutters and creating rectangular beam shapes, rotatable and indexable (Patent pending)
    • Frost: variable 1° (light) and 5° (medium)
    • Motorized zoom and focus
    • Remote Hot-spot control: adjustable from 5:1 to 2.5:1 in spot mode and from 7:1 to 2.7:1 in beam mode (Patent pending)
    • Pre-programmed random strobe & pulse effects
    • Dimmer: 0 – 100%
  • CONTROL AND PROGRAMMING

    • Setting & Addressing: ROBE Navigation System 2 (RNS2)
    • Display: QVGA Robe touch screen with battery backup, gravitation sensor for auto screen positioning, operation memory service log with RTC, stand-alone operation with 3 editable programs (each up to 100 steps), built-in analyser for easy fault finding
    • Protocols: USITT DMX-512, RDM, ArtNet, MA Net, MA Net2, sACN
    • Wireless CRMX™ technology from Lumen Radio: On request
    • DMX Protocol modes: 2
    • Control channels: 39,34
    • Pan/Tilt resolution: 8 or 16 bit
    • Colour wheel positioning: 8 or 16 bit
    • CMY: 8 bit
    • CRI Selection: 80 or 90
    • Rotating gobo wheel positioning: 8 bit
    • Gobo indexing & rotation: 8 or 16 bit
    • Static gobo wheel positioning: 8 bit
    • Animation wheel: 8 bit
    • Animation wheel rotation: 8 or 16 bit
    • Prism indexing & rotation: 8 bit
    • Frost: 8 bit
    • Zoom: 8 or 16 bit
    • Focus: 8 or 16 bit
    • Hot-Spot: 8 bit
    • Dimmer: 8 or 16 bit
  • MOVEMENT

    • Pan movement: 540°
    • Tilt movement: 265°
    • Movement control: Standard and Speed
    • Automatic Pan/Tilt position correction
    • EMS™: Electronic Motion Stabilizer system for Pan & Tilt reducing beam deviation caused by truss movement or vibration (Patent pending)
  • ROTATING GOBOS

    • Glass gobos: 9 rotating gobos
    • Outside diameter: 15.9 mm
    • Image diameter: 12.5 mm
    • Thickness: 1.1 mm
    • High temperature borofloat or better glass
    • "SLOT&LOCK" system for easy replacement of gobos
  • STATIC GOBOS

    • Aluminium wheel with fixed gobos: 10 gobos & 4 beam reducers + open position
  • THERMAL SPECIFICATION

    • Maximum ambient temperature: 45 °C (113 °F)
    • Maximum housing temperature: 80 °C (176 °F)
    • Minimum operating temperature: -5 °C (23 °F)
  • ELECTRICAL SPECIFICATION AND CONNECTIONS

    • Power supply: Electronic auto-ranging
    • Input voltage range: 100-240 V, 50/60 Hz
    • Power consumption: 670 W at 230 V / 50 Hz
    • Power in connector: Neutrik powerCON TRUE1
    • DMX and RDM data in/out: Locking 3-pin & 5-pin XLR
    • Ethernet port in: RJ45
  • APPROVALS

    • CE Compliant
    • cETLus Compliant

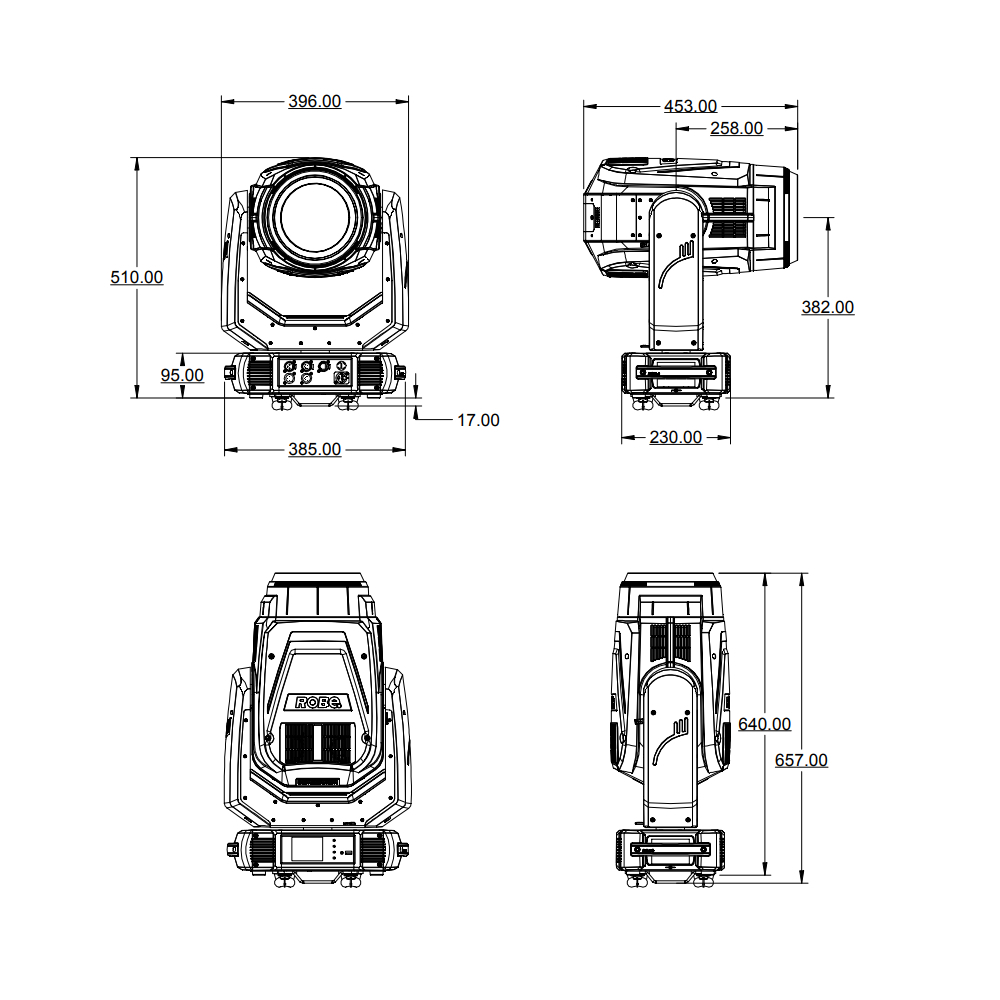

  • MECHANICAL SPECIFICATION

    • Height: 640 mm (25.2”) - head in vertical position
    • Width: 396 mm (15.6”)
    • Depth: 230 mm (9.1”)
    • Weight: 22 kg (48.5 lbs)
  • RIGGING

    • Mounting positions: Horizontally or vertically
    • Universal operating position
    • Mounting points: 2 pairs of 1/4-turn locking points
    • 2x Omega adaptors with 1/4-turn quick locks
    • Pan and Tilt transport locks
    • Safety cable attachment point
