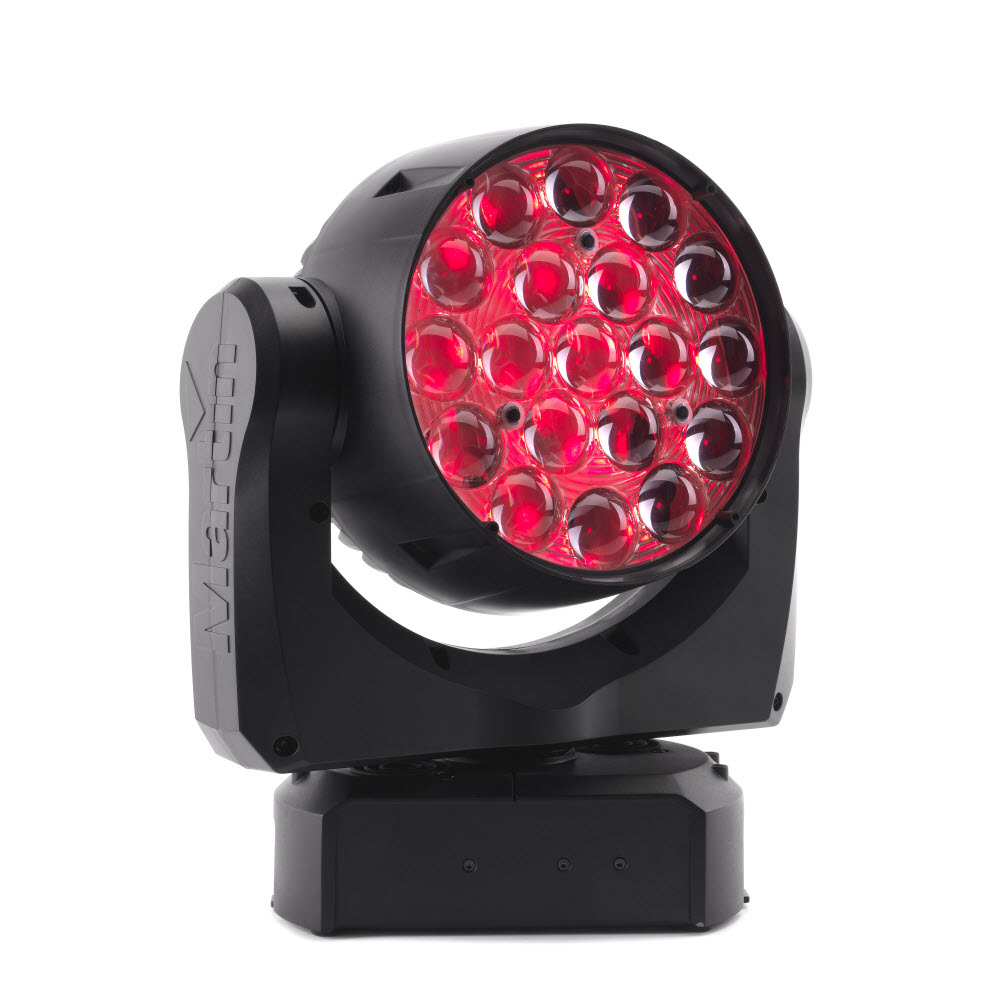

The MAC Aura XB takes an award-winning, innovative, compact LED wash light to the next level, incorporating many new features first introduced with the MAC Quantum Wash™. Not only does the MAC Aura XB offer additional brightness, it also features a new superior color mixing system and an optimized lens design for tighter beams and more even washes. Martin's unique and patented Eye-candy Aura Effect™ is also part of the package.

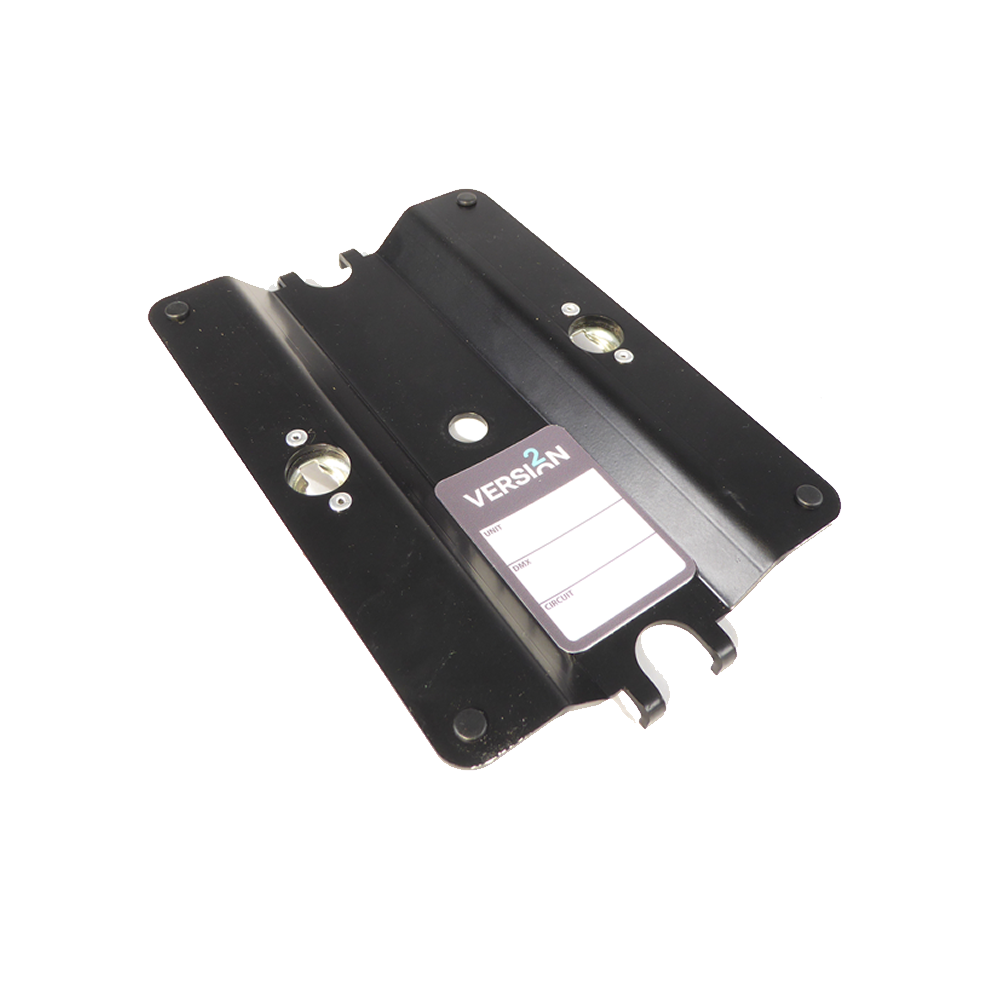

Standard hanging arrangements includes both Omega Bracket with Trigger Clamp and Omega Bracket with 28mm Spigot for monopole usage without a t-bar.
Feature Overview
- Super-bright single-lens wash with fully premixed color
- Broad color palette, RGBW color mixing
- Eye-candy Aura Effect™
- Uniform shades
- Built-in FX engine
- 10 to 60° uniform zoom
- 6000 Lumens output
- Rapid movement
- Compact, low weight design (6.5 kg)
- High efficiency, low power consumption

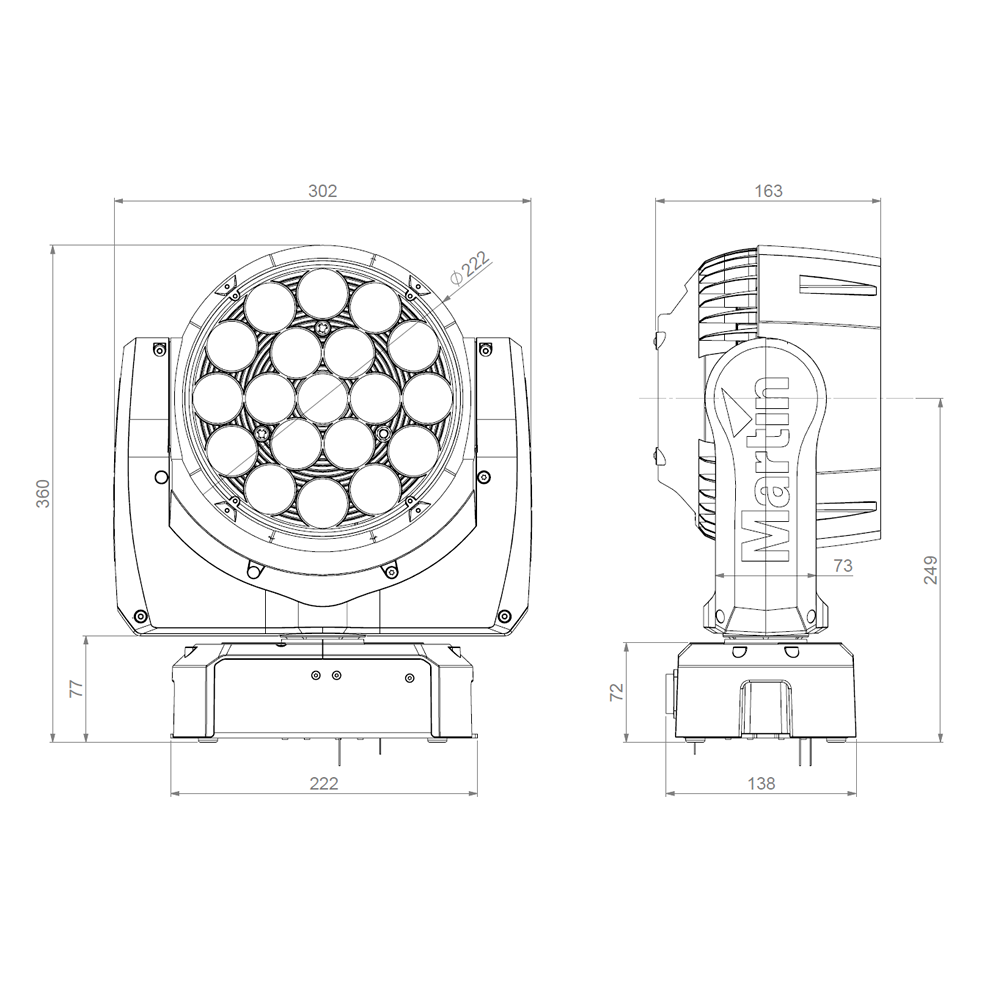

Physical
Length (across yoke): 302 mm (11.9 in.)
Width (across yoke): 302 mm (11.9 in.)
Height (head straight up): 360 mm (14.2 in.)
Weight (without accessories): 6.5 kg (14.4 lbs.)
Dynamic Effects
Beam color mixing: RGBW

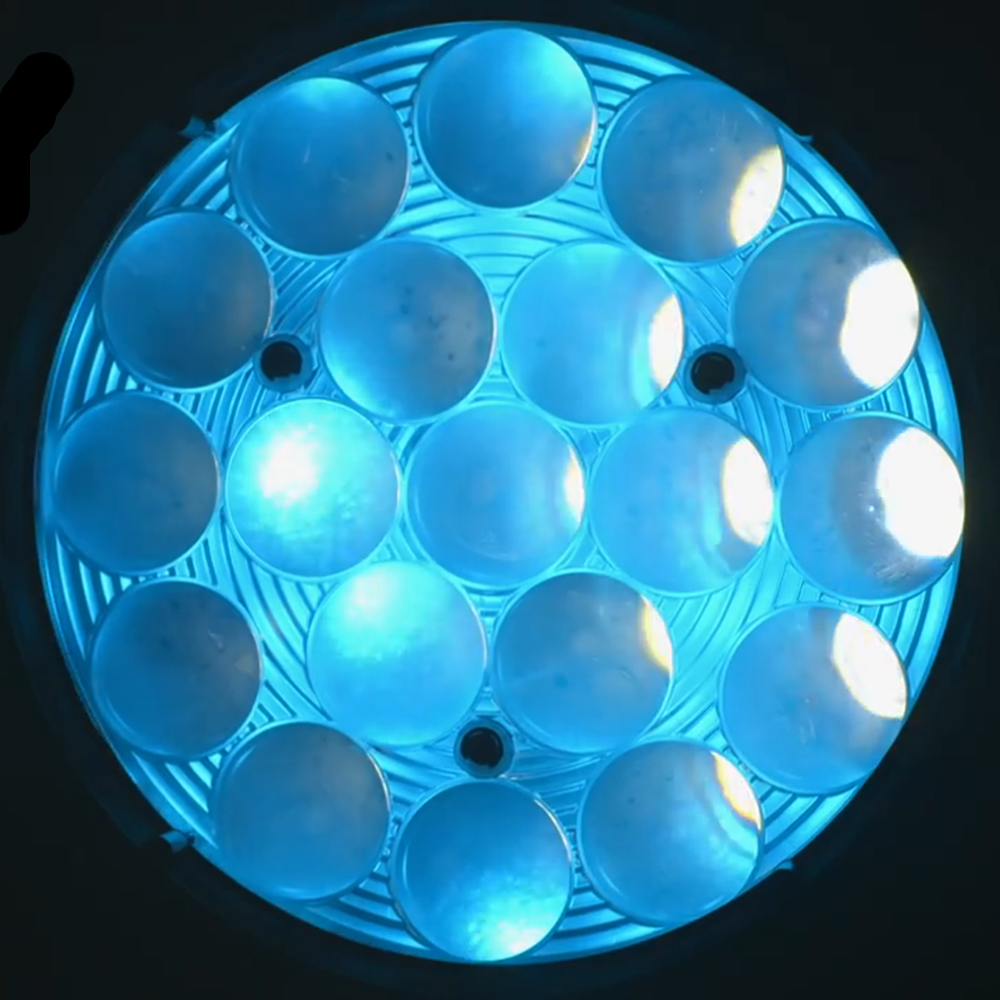

Aura (secondary lens array illumination) color mixing: RGB
Beam color temperature control: CTO, variable 10 000 - 2500 K
Beam and aura electronic 'color wheel' effect: 33 LEE-referenced colors plus white, variable-speed color-wheel rotation effect and random color
Beam and aura independent shutter effects: Electronic, with regular and random pulse, burst and strobe effects
Pre-programmed effects: Range of independent and synchronized Beam and Aura FX, two combinable
Electronic dimming: Independent beam and aura, four dimming curve options
Zoom: 10° - 60° (one-tenth peak angle)
Pan: 540°
Tilt: 232°
Pan and tilt speed: Adjustable via onboard control panel and DMX
Control and Programming
Control options: Independent or synchronized Beam and Aura control
Control system: DMX, RDM
Control resolution: 8-bit, with 16-bit control of pan & tilt
DMX channels: 14/25
Setting and addressing: Control panel with backlit graphic display
DMX compliance: USITT DMX512-A
RDM compliance: ANSI/ESTA E1.20
Transceiver: RS-485
Firmware update: Via DMX with Martin™ USB Duo DMX Interface Box
Optics and Photometric Data
Light source: 19x 15W RGBW LED Array System
LED refresh rate: Beam 1200 Hz, Aura 4395 Hz
Minimum LED lifetime: 50 000 hours (to >70% luminous output)
Total luminous output (wide, one-tenth peak): 6000 lumensTotal luminous output (narrow, one-tenth peak): 4300 lumens
Video compatibility: Designed for use with HD/high-speed video cameras
Construction
Color: Black
Housing: High-impact thermoplastic, flame-retardant to UL 94 5VA
Protection rating: IP20
Installation
Mounting points: M12 hole for rigging clamp, attachment points for surface-mounting bracket
Orientation: Any
Minimum distance to combustible materials: 200 mm (8 in.) from fixture
Minimum distance to illuminated surfaces: 1 m (3 ft. 4 in.) from fixture
Location: Indoor use only, must be fastened to surface or structure

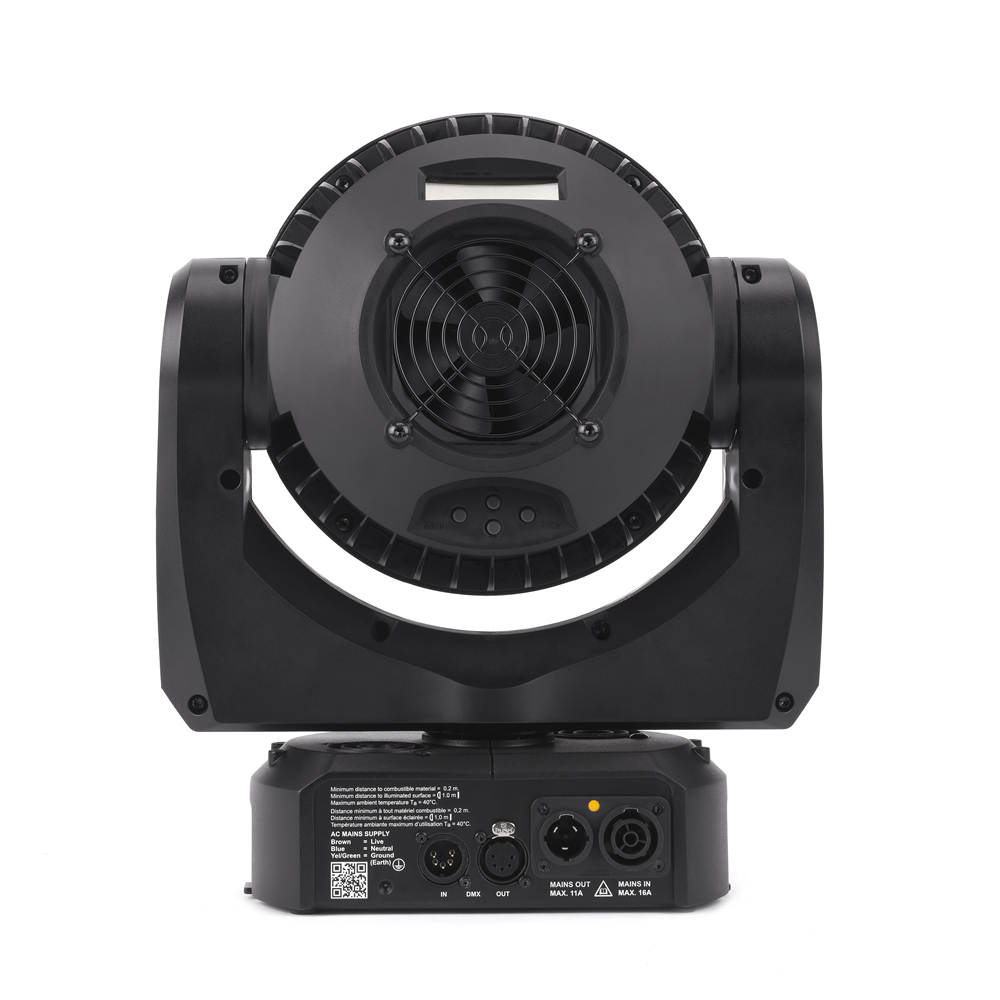

Connections
AC power: Neutrik PowerCON TRUE1 NAC3PX dual socket
AC power input socket: Accepts Neutrik PowerCON TRUE1 NAC3FX-W cable connector
AC power thru socket: Accepts Neutrik PowerCON TRUE1 NAC3MX-W cable connector
DMX data in/out: 5-pin locking XLR
Electrical
Maximum power consumption: 400 W
Power supply unit: Auto-ranging electronic switch mode
AC power: 100-240 V nominal, 50/60 Hz
Typical half-cycle RMS inrush current: 10.7 A
Power consumption, all effects static, zero light output: <25 W
Typical Power and Current
100 V, 60 Hz: 359 W, 3.8 A, PF 0.99
120 V, 60 Hz: 355 W, 3.2 A, PF 0.99
208 V, 60 Hz: 350 W, 1.8 A, PF 0.97
230 V, 50 Hz: 349 W, 1.7 A, PF 0.95
240 V, 50 Hz: 349 W, 1.6 A, PF 0.95
Thermal
Cooling: Forced air (temperature-regulated, low noise, user-definable levels)
Maximum ambient temperature (Ta max.): 40° C (104° F)
Minimum ambient temperature (Ta min.): 5° C (41° F)
Total heat dissipation (calculated, +/- 10%): 1230 BTU/hr.
