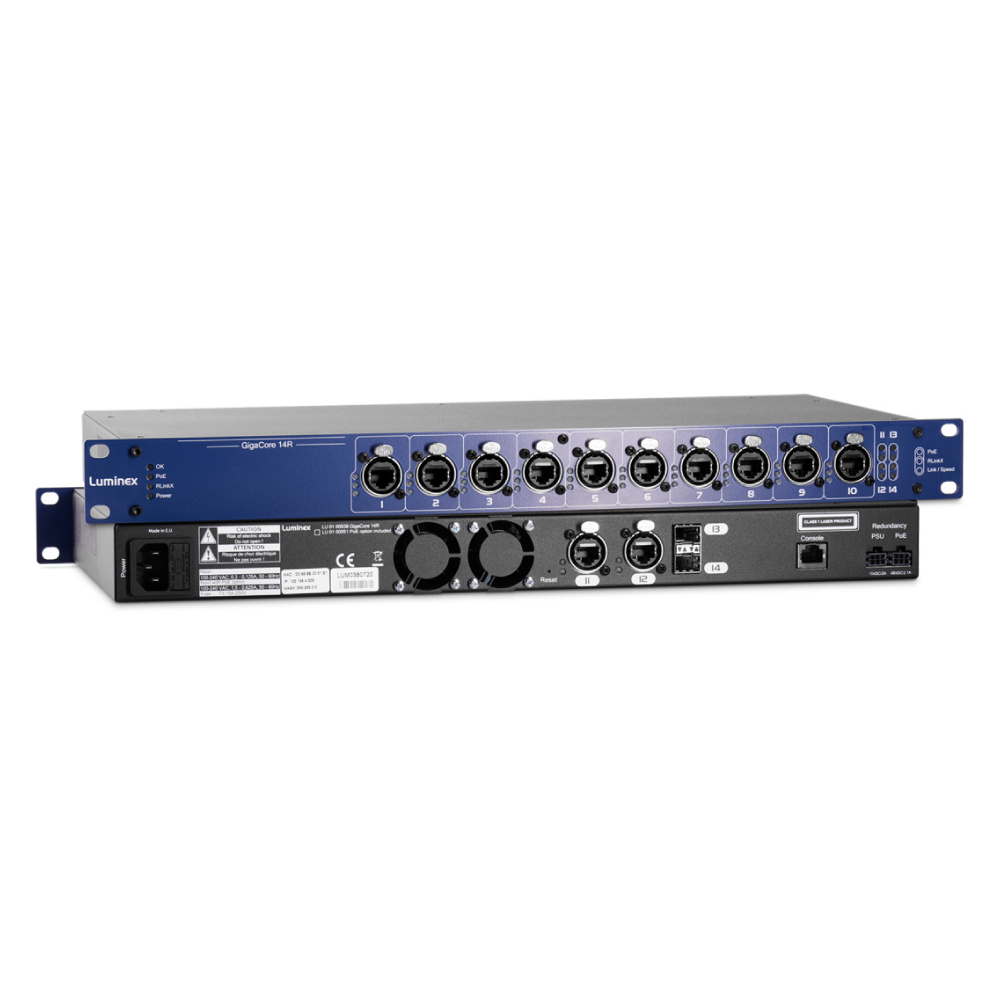

Luminex Gigacore 14R Gigabit Fibre Ethernet Switch

Luminex Gigacore 14R Gigabit Fibre Ethernet Switch


Want to hire this item?

To hire this product or for more information,
click below or call us on 0203 598 6938


Send Hire Enquiry
Send Hire Enquiry

Tailored for AV industry

Pre-configured settings that are common in the AV industry, such as QoS and IGMP snooping.

Easy set-up

Easy group function with pre-configured VLAN’s for a quick set-up (without IT knowledge).

Touring approved

Metal housing and ruggedized Ethercon connectors, ideal for touring and live events.

Converged networking

Transfer multiple protocols (ArtNet, MANet, sACN...)

Ultimate link redundancy

RlinkX redundancy protocol automatically takes over signal in milliseconds in case of a link failure.

Fibre Options

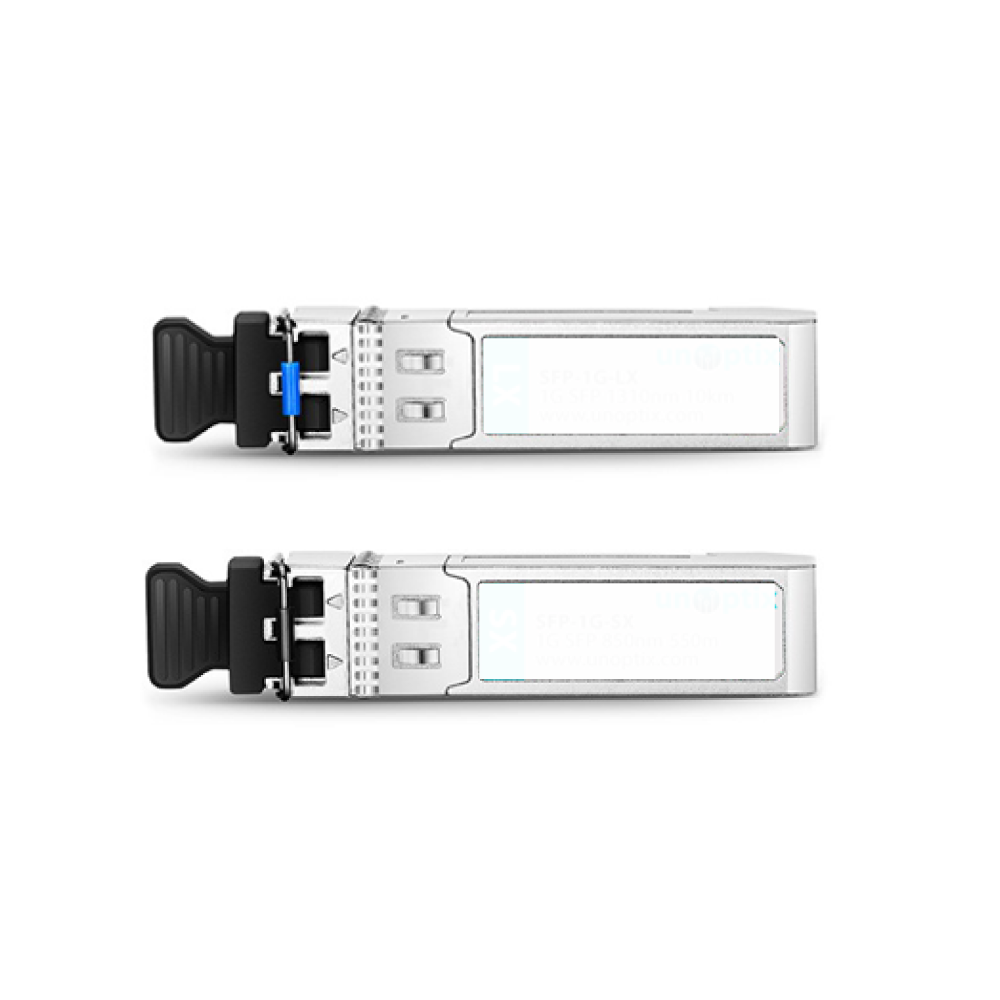

The GigaCore 14R provides users with two SFP cages for Fiber connectivity. Just connect a multimode or single mode Fiber transceiver to each cage and it will enable you to cover greater distances with a total link immunity up to 10km!

  • Most suitable applications: Touring and live events
  • RLinkX (Link redundancy): Yes
  • Groups (VLAN segmentation): Yes
  • MultiLinkX (Link aggregation): Yes
  • Profile manager: Yes
  • Memory: 4Mb
  • MAC address table: 8192 Entries
  • Address learning / Aging: Self learning, Auto aging
  • Switching throughput: 32Gbps
  • Jumbo frames: MTU up to 9600
  • IGMP support: Yes (V1/V2/V3)
  • IGMP snooping: Yes, enabled by default
  • Port sensing: Auto negotiation
  • Auto crossover: MDI / MDIX
  • Auto sensing: Full or Half Duplex (Gigabit is Full Duplex)
  • Ethernet connectivity: 12 x Shielded Neutrik Ethercon connectors
  • Fiber connectivity: 2 x SFP cages
  • Ethernet port speed: 1Gbps
  • Serial: 1 x serial RJ45 console port
  • Power connectivity:
    • 1 x IEC inlet with fuse holder
    • 1 x redundant power input on Molex Micro-Fit 6 pin connector
    • 1 x redundant PoE input on Molex Micro-Fit 6 pin connector
  • Power input: 100-240VAC, 50-60Hz
  • Power consumption: Maximum 30W Maximum 180W with PoE
  • Fuse: 3.15A 250V Slow Blow
  • Backup power input: 15VDC / 2A
  • Backup PoE power input: 48VDC / 3.4A
  • PoE: Optional on front ports only (up to 160W)
  • Supported protocols: Avnu AVB/MILAN, Dante©, RAVENNA/AES67©, Ethersound©, Q-SYS/Q-LAN, REAC©, sACN, ArtNet, MANet2, HogNet, RTTrPL (BlackTraX), IEEE 802.1p CoS (Class of Service), DiffServ (DSCP), PoE (802.3af) (optional), PoE+ (optional), IEEE 1588 PTP V2
  • Sound protocol compliance: Yes (low jitter)
  • Ethernet compliance: IEEE 802.3, IEEE 802.3u, IEEE 802.3x Flow Control, IEEE 802.3ab Gigabit Ethernet
  • Mounting: Rack
  • Enclosure: Robust metal housing
  • Dimensions (W x D x H): 482 x 204,3 x 44 mm (19″ x 8.04″ x 1.73″)
  • Weight: 2,9 kg
  • Packaging: 545 x 335 x 80 mm (21,5" x 13,2" x 3,15")
  • Environment:
    • Operating temperature: 0 to +50 °C
    • Storage temperature: -10 to +70 °C
    • Humidity (non condensing): 5 to 95% RH
  • Noise level @1m:
    • Max 30dBA (PoE or Non PoE, Ambient: 0 – 35°C)
    • Max 42dBA (PoE or Non PoE, Ambient: 35 – 50°C)
  • Certificates/Approvals: CE, RoHS
  • Standards: EN 60950-1, EN 55022, EN 55024
