Dimmer / Relay Rack 48x 3kW (No Patch)

48 Way Dimmer / Relay Rack

The Version 2 custom built LSC Gen VI configurable dimming / switching enables control of both traditional tungsten lamps and moving light / LED fixture hot power in one package.

Input

• 400A Powerlock

Output

• 400A Powerlock unprotected loop out

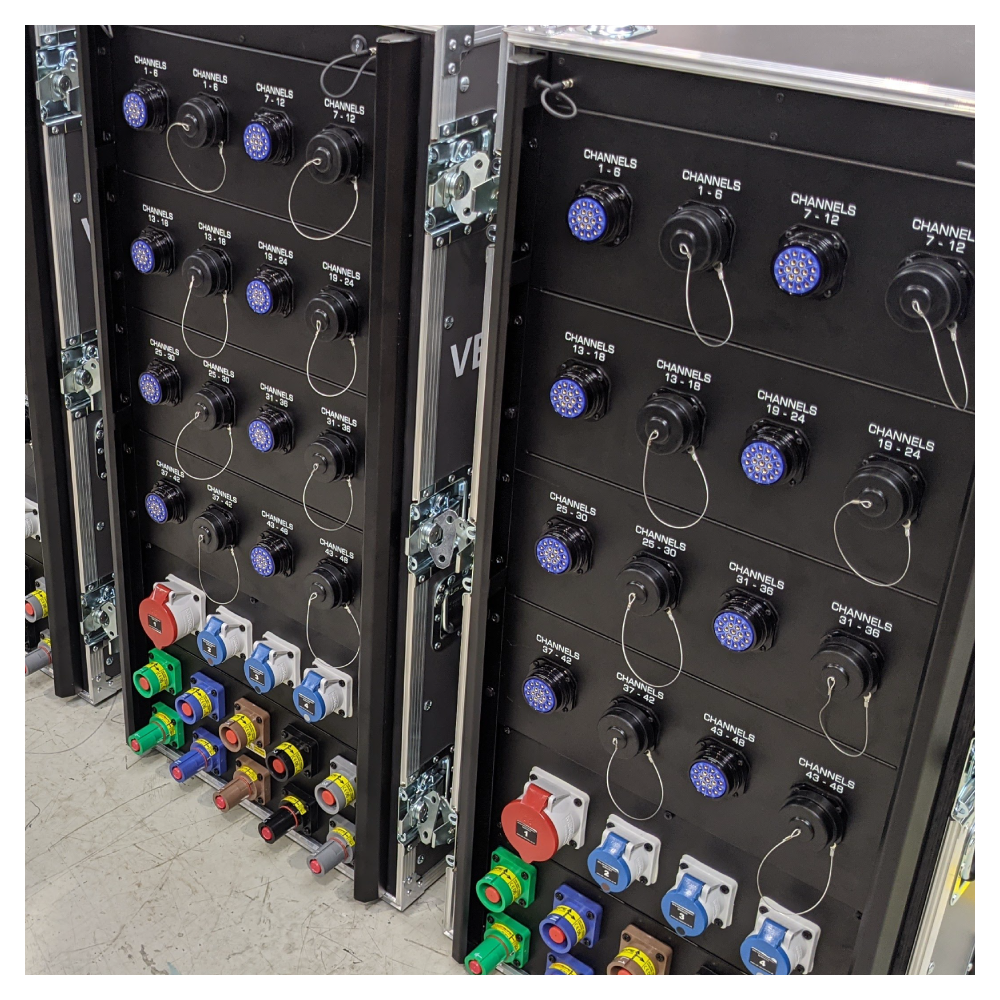

• 12x Socapex outputs (2x per 6x outputs, paralleled, 3 phase)
• No patch panel - directly connected
• 3x 16A & 1x 32A 3PH utility outlet

Protection

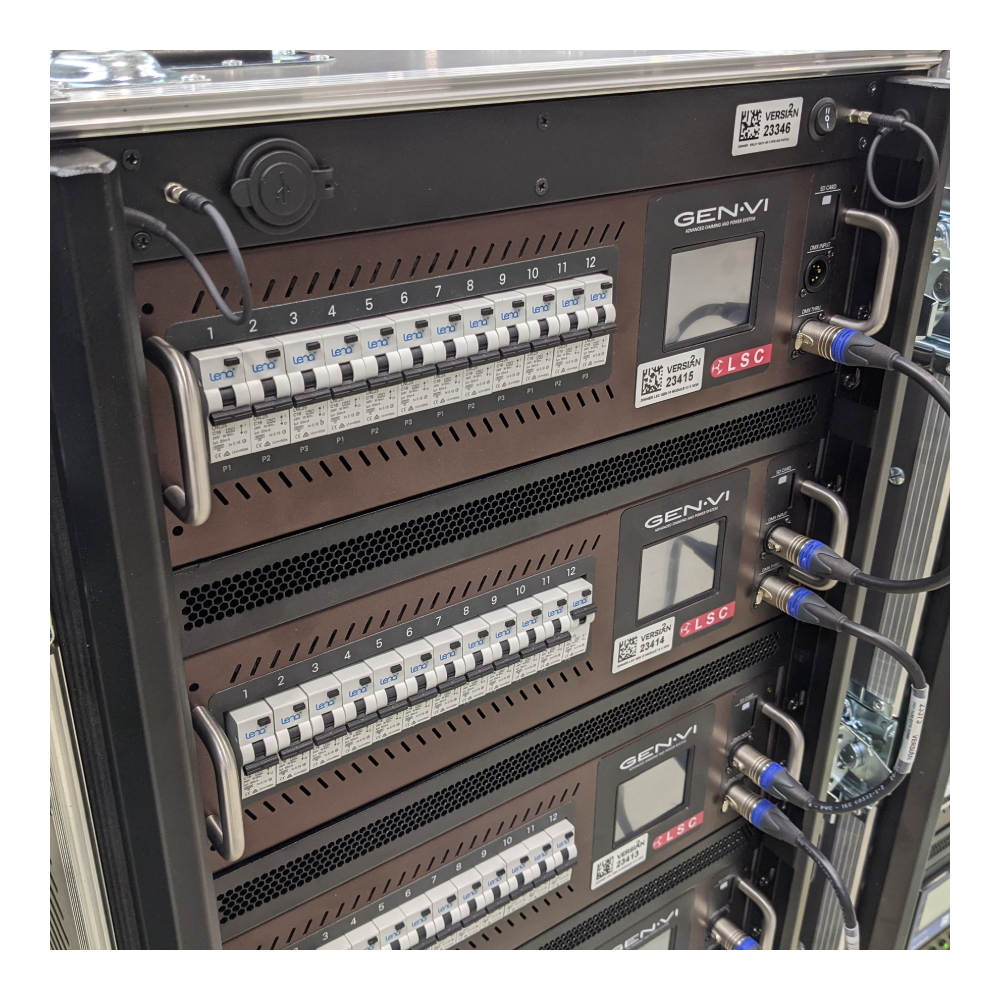

• 63A 3PH MCB protection per bay
• 16A 30mA RCBO protection per output

Other Features

• V2 Smart Distro metering with network connection
• Earth Stud
• LED front & rear panel lighting

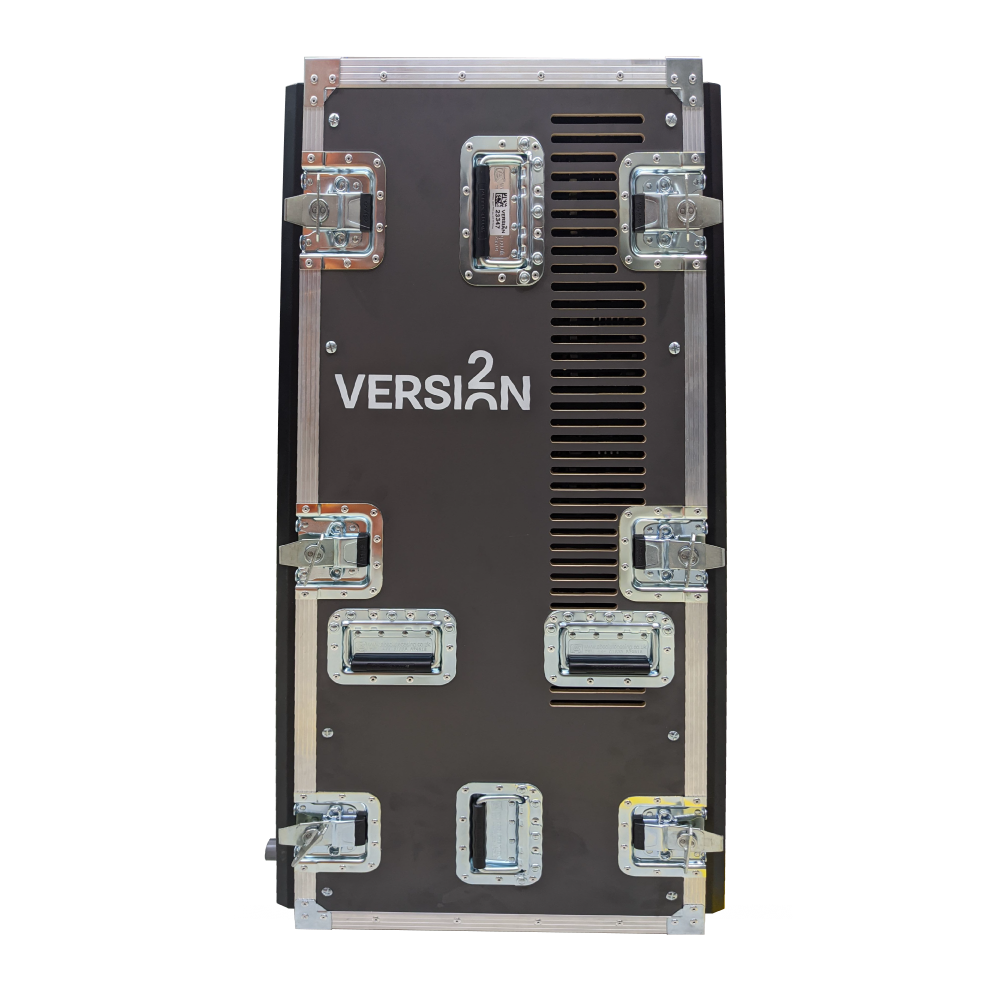

• Side vented 19" Flight Case

LSC Features

• Auto power mode – switches relay channels on when DMX is applied and off when DMX is no longer present
• Dimming selectable between 8-bit and 16-bit resolution
• Control and remote monitoring via RDM (Remote Device Management) or Houston-X
• On-board help screens
• Set individual channels to PTFD dimmer or TruPower switch mode
• DMX snapshot of the DMX input from a lighting controller can be stored and recalled either locally or as an emergency backup on loss of DMX signal
• Sophisticated local rigger’s control that can replay Scenes or Chases
• Auto fan control (user-defined)

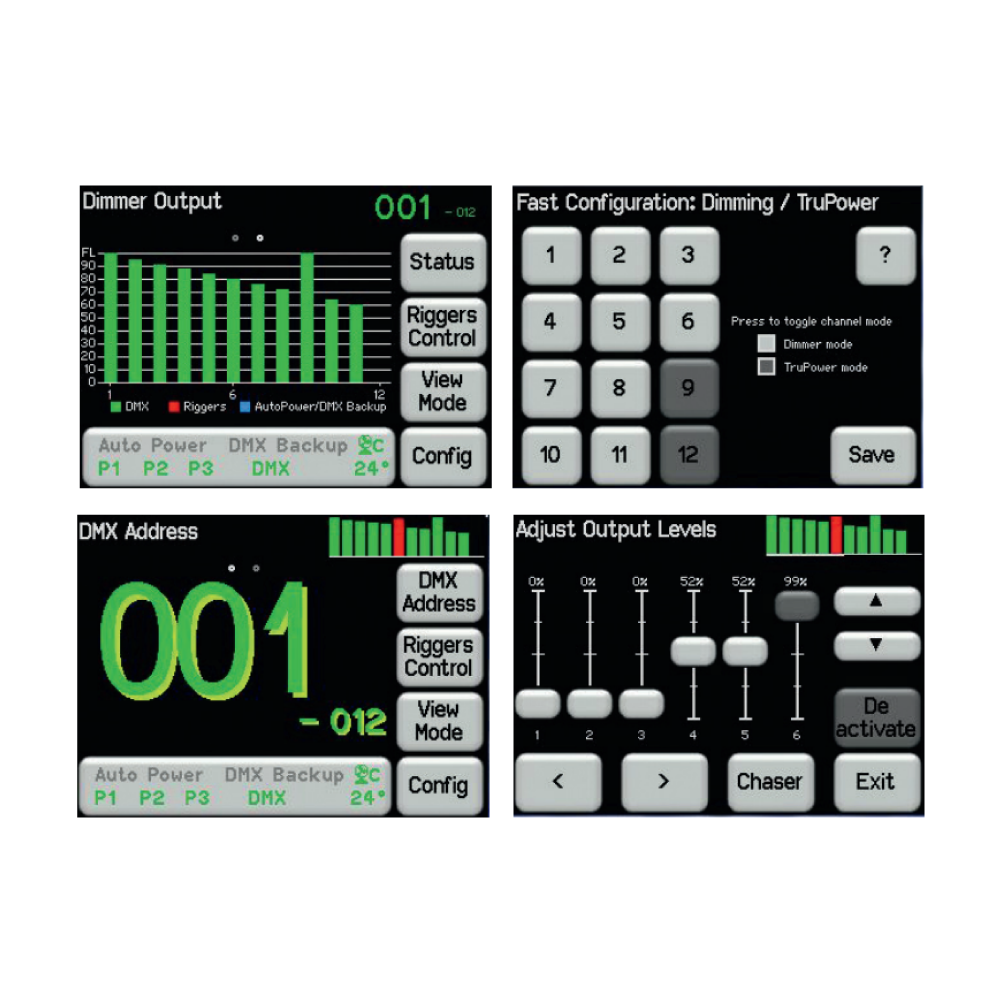

• Colour touchscreen with intuitive navigation – set each channel individually, control the outputs locally and view external fault conditions
• Neutral loss protection
