Chroma-Q FX Force 380 UV 12
Want to hire this item?
To hire this product or for more information,
click below or call us on 0203 598 6938
Send Hire Enquiry

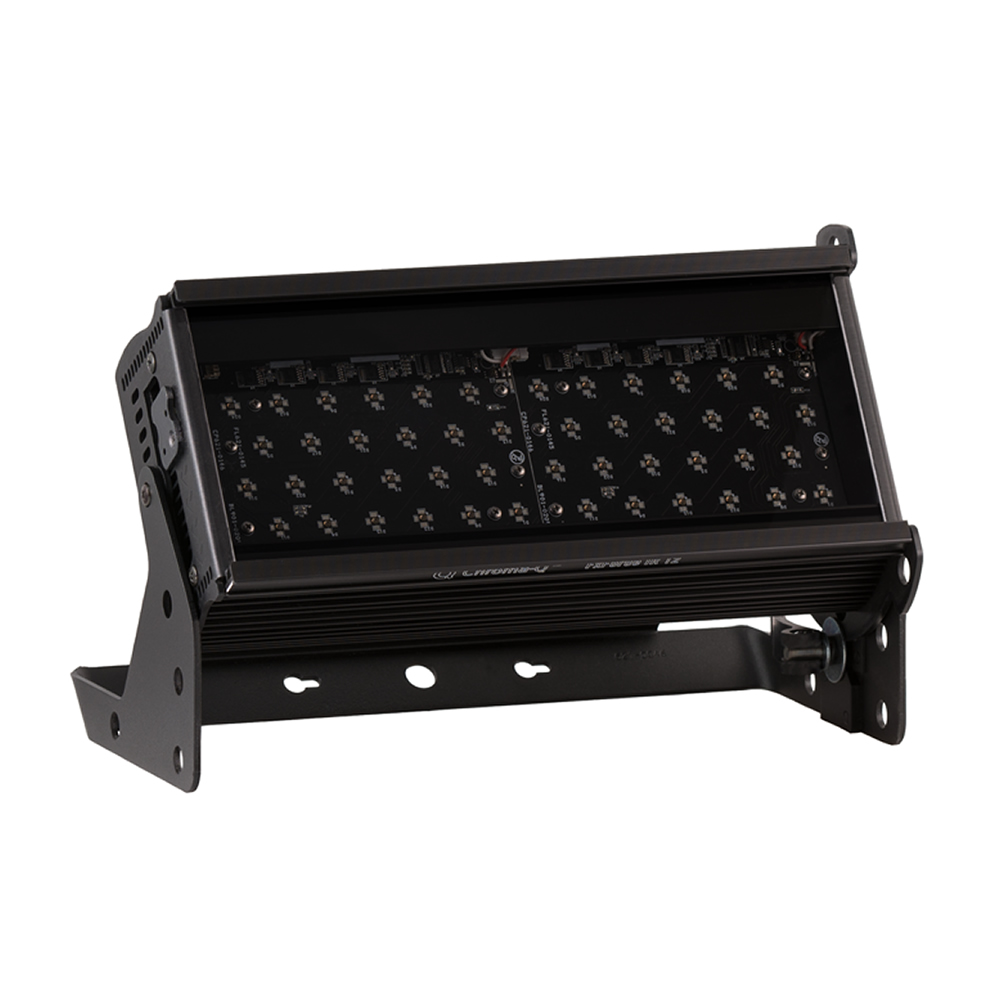

Chroma-Q FX Force 380 UV 12 is an ultra violet lighting fixture which utilizes the same core innovative LED technologies found in the Color Force™ range to provide a UV light ideal for black light effects. Successfully used in the Film and TV market, it can be used in many other applications including image capturing photography. Designed for practicality, the unit is equipped with a manual control mode and a range of optional accessories.
Extremely smooth, uniform wash
Theatrical grade dimming
Ideal for TV and film
335mm length ideal for floor, wall or truss mounting
Camera friendly
PowerCon input and output for easy daisy chaining of fixtures
Broad range of accessories available
Flat end plates for seamless washing
Built-in power supply
Hidden quick release fixings
Ruged extruded aluminum body
Net Dimensions: Width x Height x Depth 335mm x 190mm x 219mm
Net Weight: 4.4kg / 9.6lbs
Power Supply: Built-in
Power Input Rating: 100-240V AC, 50-60 Hz, 160VA
Power Factor: 0.9
Power Consumption: 110W (maximum intensity); 6W (stand-by)
Typical Power & Current: Measurements done with all LEDs at max. intensity. Measurements made at nominal voltage. Allow for a deviation of +/- 10%.

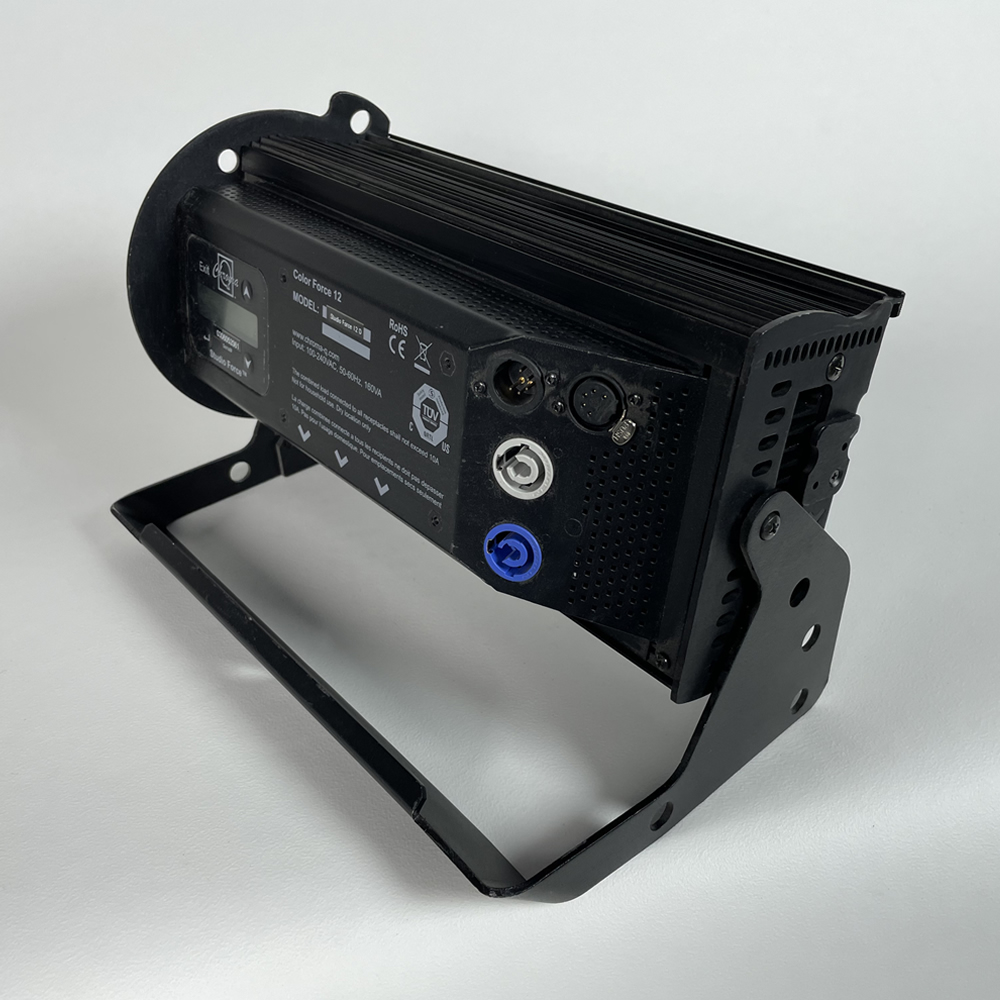

Power Connectors In/Out powerCon
Data Connectors In/Out XLR 5-pin
Control Protocol: ANSI E1.11 USITT DMX 512-A
Cooling System Forced: 1 fan
Operating Temperature: 0°C to 40°C
Construction: Black anodised aluminium extrusion
Colour: BlackBuilt-In Hardware: Quick release lever for tilt adjustment
IP Rating: IP20
Approvals: CISPR 22:2008/EN55022 :2010 & CISPR 24 :2010/EN55024 :2010, ICES-003 :2004 & FCC Part 15 Subpart B: 2010, CSA C22. No.
166-M1983:R2008 UL 1573:2003
