400A ISU Distro (3X P/L, 1X 63A)

400A ISU Distro (3X P/L, 1X 63A)


Want to hire this item?

To hire this product or for more information,
click below or call us on 0203 598 6938


Send Hire Enquiry
Send Hire Enquiry

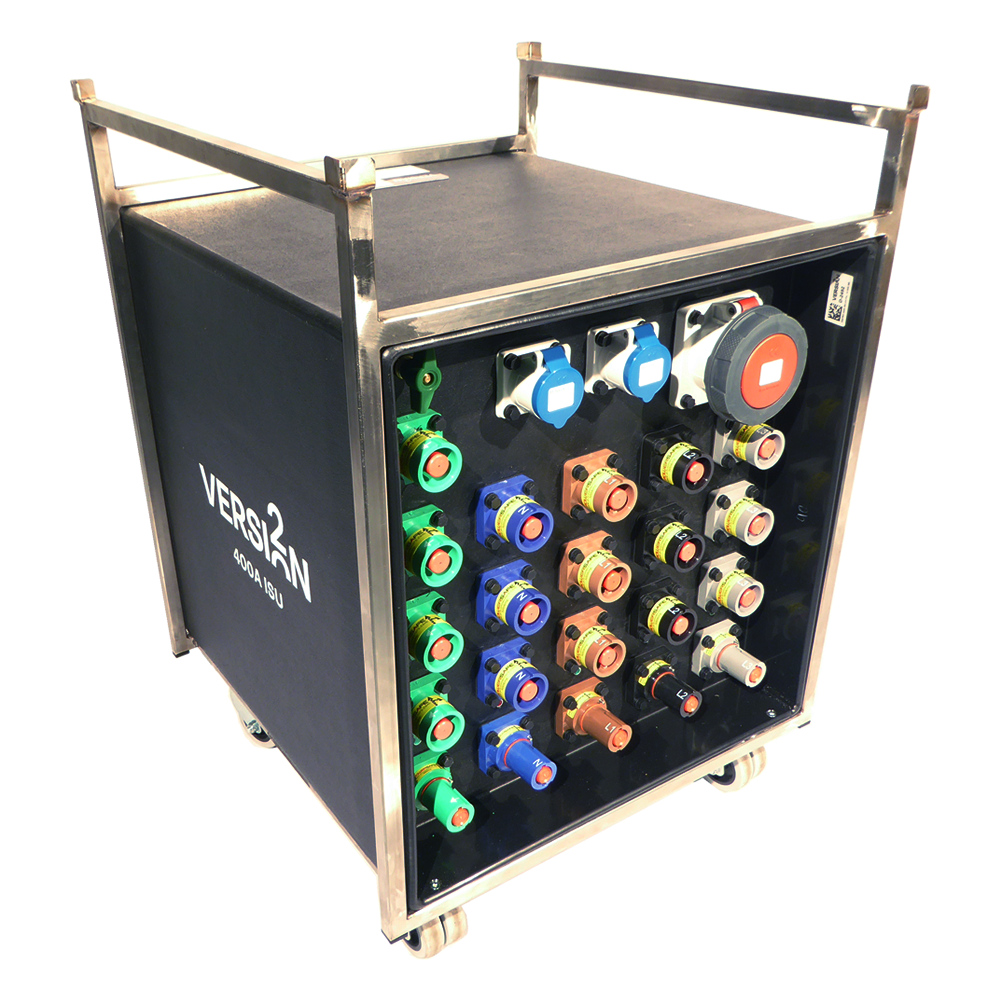

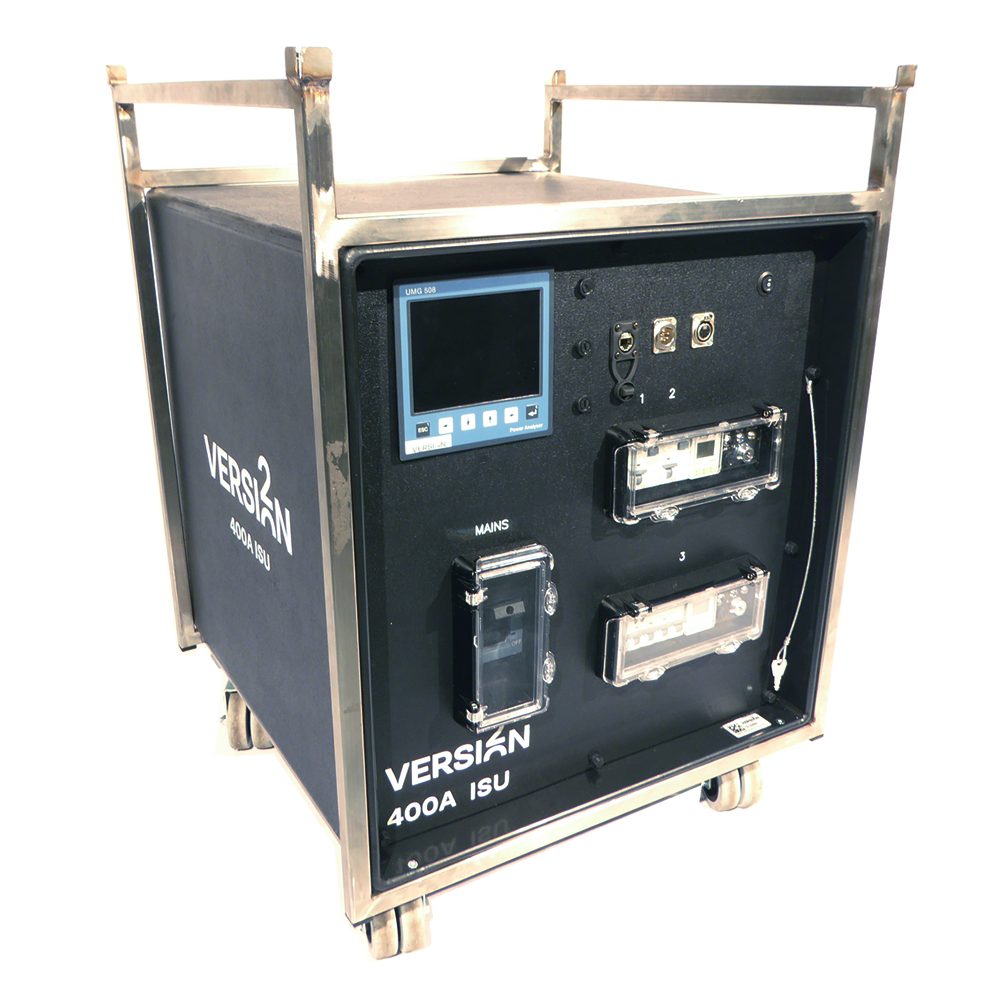

Part of the Version 2 SMARTdistro stacking frame range of power distribution, designed to meet and exceed the requirements of BS7909.

Input

  • 400A Powerlock Set

Output

  • 3x 400A Powerlock sets out (protected)
  • 1x 63A 3Ø Ceeform
  • 2x 16A Ceeform

Protection

  • Powerlock - 400A 4P MCCB (time / current adjustable) with key switchable and adjustable RCD shunt trip
  • 63A - 4P C Type MCB with key switchable and adjustable RCD shunt trip
  • 16A - 30mA DP RCBO

Other Features

  • Additional Powerlock earth connector & earth stud
  • LED front panel lighting

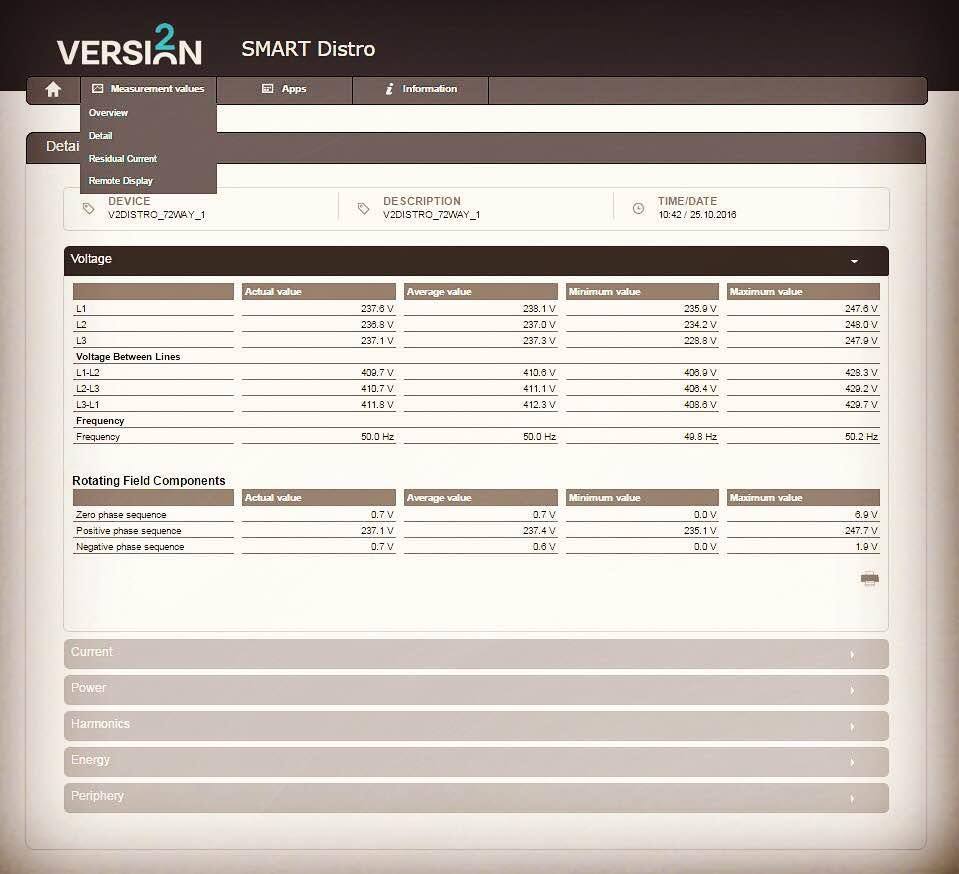

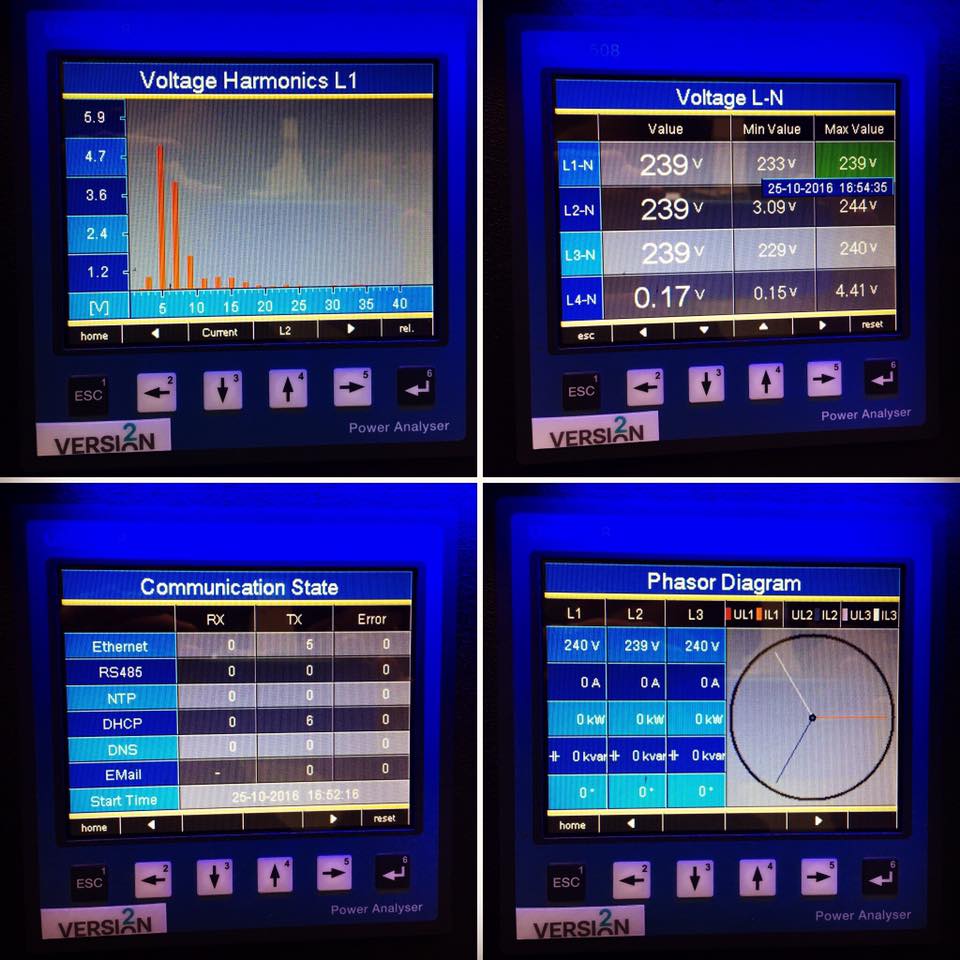

  • Version 2 SMARTdistro monitoring with network & modbus connections

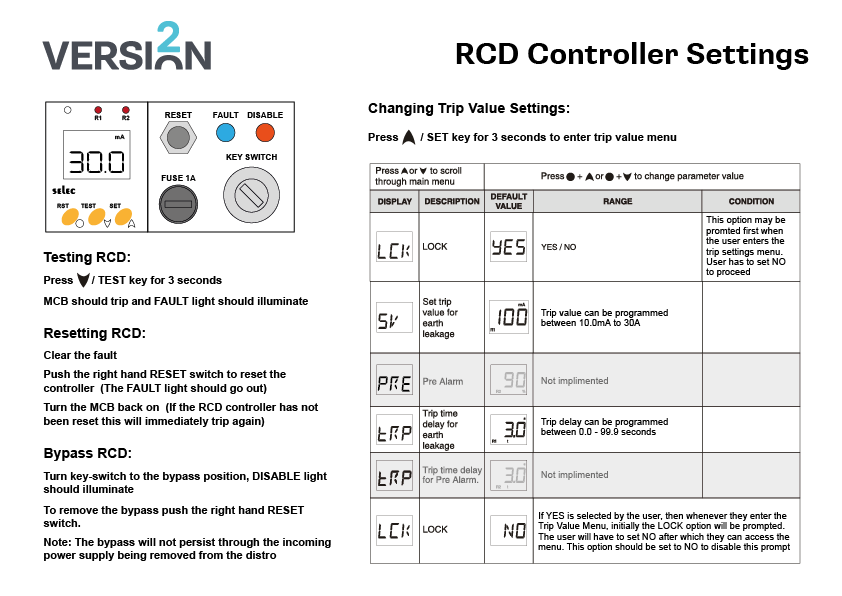

Default RCD Trip Settings:

  • 400A Powerlock - 480mA - 1000ms
  • 125A Ceeform 1&3 Ø - 480mA - 500ms
  • 63A Ceeform 3Ø - 300mA - 300ms
  • 63A Ceeform 1Ø - 100mA - 100ms
  • 32A Ceeform 1&3 Ø - 30mA - no delay
  • 16A Ceeform - 30mA - no delay
